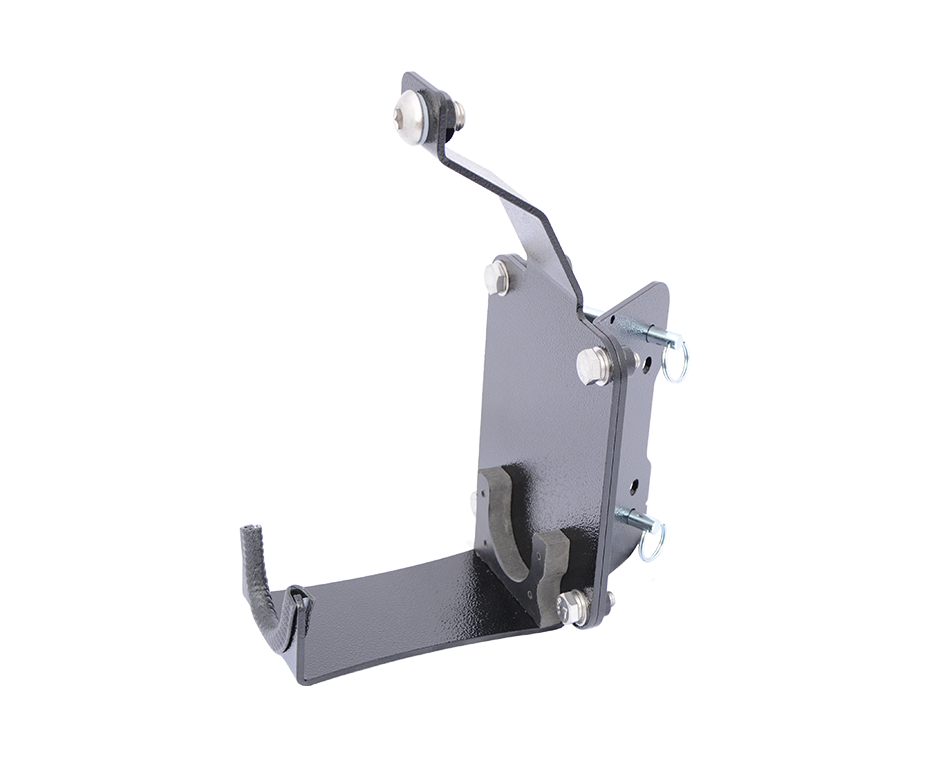

Checkmate FABXR-DB Mounting Bracket
- Pin RestraintsPins are captivated via webbing straps to prevent loss
- 5mm GalvanisedWire Rope
- Powder CoatedCarbon Steel Housing
- 20m Capacity DrumSteel cast drum
-
Pin RestraintsPins are captivated via webbing straps to prevent loss
-
5mm GalvanisedWire Rope
-
Powder CoatedCarbon Steel Housing
-
20m Capacity DrumSteel cast drum
-
Knurled NutAllows operative to adjust the length of the crank handle for increased torqu
-
Swivel HandleRotates in the hand when gripped
The FABXR-DB is an adjustable bracket designed to mount the FABXR to the Checkmate TR2/TR3 Tripod and the Reid PORTA-GANTRY RAPIDE. Features: One fixing to attach to bracket, negates need for tools to fix to TR3 on site Markings to indicate correct fixings for TR3 and PORTA-GANTRY RAPIDE 3 piece design means tailored fixings can be possible (additional cost) To change bracket from Checkmate tripod to a REID PORTA-GANTRY requires 1 sliding rear plate and 2 x 17mm spanners FABXR can remain in bracket at all times & does not require removal when fitting to gantry or tripod CompatibilityCheckmate TR2/T3 Tripod & REID PORTA-GANTRY RAPIDE.
May be compatible in other applications (details on request) Unit weight3kg (inclusive of fittings) User weight150Kg maximum Construction: MaterialHigh tensile hot rolled steel FinishPowder coat EN409 black leatherette gloss Standards: EN 360 EN 1496 A/B
